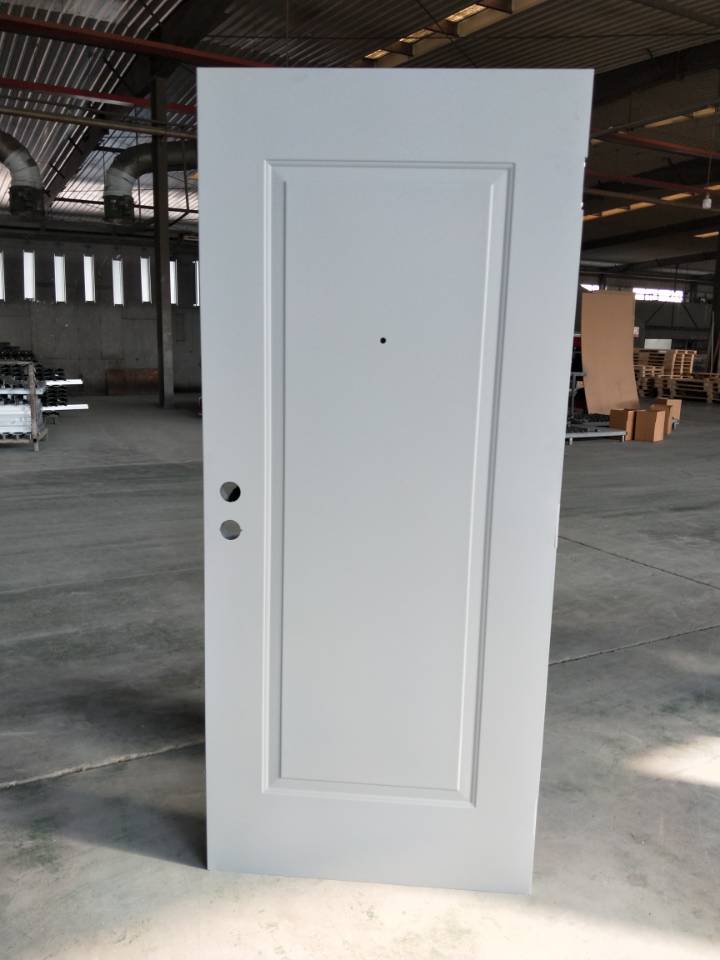

Brief Introduction
The 1-panel door designed perfectly for applications on more traditional looking style without sacrificing the durability of standard commercial metal security home door. our heavy duty 1-panel steel door is an ideal solution for building, apartment, hotel and motel entry doors and high-end residential buildings.
Heavy Duty 20/18-Gauge A-40/60 Galvanized or galvaneal Steel
Insulated Polystyrene/Honey comb Core (Energy Efficient) filling.
Specification
|
Door material |
A40 Galvanized steel or galvanealed .Heavy Duty, SDI Level 2 –( 1.1mm)18-Gauge Steel Face Sheets for doors ,(1.4mm) 16 gauge for frame – (16 Ga. 20 Ga. Available) |
|
Core |
Honeycomb Core or Polystyrene Core mineral fireboard /rock wool |
|
Thickness |
1-3/4"(44.5mm )AS Standard |
|
Handing |
Non-Handed Design; Reversible Hinge Plates |
|
Sizes |
Standard Widths up to 4'0"(1220mm), Heights to 8'0"(2440mm) for single ,double will be 8'0" by 8'0"(2400*2400mm),other sizze customized available |
|
Reinforcements |
Heavy Gauge steel for Door Closer and Hinge, Lock Reinforcements |
|
Channels |
16-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap |
|
Door Finish |
Gray Primer/Finish Paint/powder coating /wood grain finished |
|
Standard Preps |
161 (cylindrical lock), 86 Edge (mortise lock), RPD (Panic Bar Reinforced) |
|
Optional Preps |
Exit Device Trim, Deadbolts, Card Locks |
