Steel frames are a cornerstone in modern construction, offering strength, durability, and versatility. As a leading steel frame supplier, I understand the importance of providing comprehensive information about the common sizes of steel frames to our clients. This knowledge is crucial for architects, contractors, and DIY enthusiasts alike, as it helps in planning, designing, and executing construction projects efficiently.
Understanding Steel Frame Dimensions
Before delving into the common sizes, it's essential to understand the key dimensions used to describe steel frames. The primary dimensions include the depth, flange width, and web thickness. The depth is the vertical measurement from the top to the bottom of the frame, the flange width is the horizontal measurement of the top and bottom flat portions, and the web thickness is the thickness of the vertical plate connecting the flanges.
Standard I - Beam Sizes
I - beams, also known as universal beams, are one of the most commonly used steel frames in construction. They are recognized for their high strength - to - weight ratio and are ideal for supporting heavy loads.
Light - Duty I - Beams
Light - duty I - beams typically have depths ranging from 4 inches (101.6 mm) to 10 inches (254 mm). The flange widths can vary from 2 inches (50.8 mm) to 5 inches (127 mm), and the web thickness may range from 0.15 inches (3.81 mm) to 0.3 inches (7.62 mm). These smaller - sized I - beams are often used in residential construction for tasks such as floor joists and small - scale roof support.
Medium - Duty I - Beams
Medium - duty I - beams usually have depths between 12 inches (304.8 mm) and 20 inches (508 mm). The flange widths can be between 5 inches (127 mm) and 8 inches (203.2 mm), and the web thickness ranges from 0.3 inches (7.62 mm) to 0.6 inches (15.24 mm). These I - beams are commonly used in commercial buildings for supporting larger floors, beams, and columns.
Heavy - Duty I - Beams
Heavy - duty I - beams are characterized by their large dimensions. Depths can go up to 36 inches (914.4 mm) or more, with flange widths ranging from 8 inches (203.2 mm) to 12 inches (304.8 mm). The web thickness often exceeds 0.6 inches (15.24 mm). These are used in large - scale industrial construction, bridges, and high - rise buildings where the load - bearing capacity needs to be extremely high.
HSS (Hollow Structural Sections) Sizes
Hollow Structural Sections, commonly referred to as HSS, are another popular type of steel frame. They are available in square, rectangular, and circular shapes.
Square HSS
Square HSS are widely used in both architectural and structural applications. Common sizes range from 1 inch (25.4 mm) to 20 inches (508 mm) in side length. The wall thickness can vary from 0.1 inches (2.54 mm) for smaller sections to 1 inch (25.4 mm) or more for heavy - duty applications. These can be found in building frameworks, guardrails, and support structures.
Rectangular HSS
Rectangular HSS offer more flexibility in design due to their non - square shape. The common sizes have a height ranging from 2 inches (50.8 mm) to 24 inches (609.6 mm) and a width from 1 inch (25.4 mm) to 12 inches (304.8 mm). Wall thicknesses are similar to those of square HSS, depending on the application requirements. They are often used in structural members where the load distribution is not uniform.
Circular HSS
Circular HSS are known for their excellent strength against compressive and torsional forces. Common outside diameters range from 1 inch (25.4 mm) to 36 inches (914.4 mm). Wall thicknesses can vary from 0.1 inches (2.54 mm) to 1 inch (25.4 mm). These are used in structures such as poles, columns, and in marine and offshore applications.
Channel Sizes
Channel steel frames, also known as C - channels, are used for various construction purposes, including framing, bracing, and support.
Standard Channel Sizes
Channel sizes are typically described by their depth, flange width, and weight per foot. Common depths range from 3 inches (76.2 mm) to 18 inches (457.2 mm). The flange widths can be from 1 inch (25.4 mm) to 4 inches (101.6 mm), and the weight per foot can vary from a few pounds to over 50 pounds. They are often used in residential and light - commercial construction for window frames, door frames, and small - scale bracing.
Custom - Made Steel Frames
While the above are the common standard sizes, we also understand that some construction projects may require custom - made steel frames. As a supplier, we are well - equipped to handle custom orders. Our team of experts can work with you to understand your specific requirements in terms of dimensions, load - bearing capacity, and other factors. Whether you need a steel frame with a unique shape, size, or a specific grade of steel, we can manufacture it to meet your exact specifications.
Importance of Choosing the Right Size
Selecting the appropriate size of steel frames is crucial for the success of any construction project. Using an undersized frame can lead to structural failures, safety hazards, and costly repairs in the long run. On the other hand, an oversized frame can increase the cost of materials and construction without providing any additional benefits. Therefore, it is recommended to consult with a structural engineer or an experienced professional to ensure that the chosen steel frame sizes are suitable for the intended application.
Our Product Range

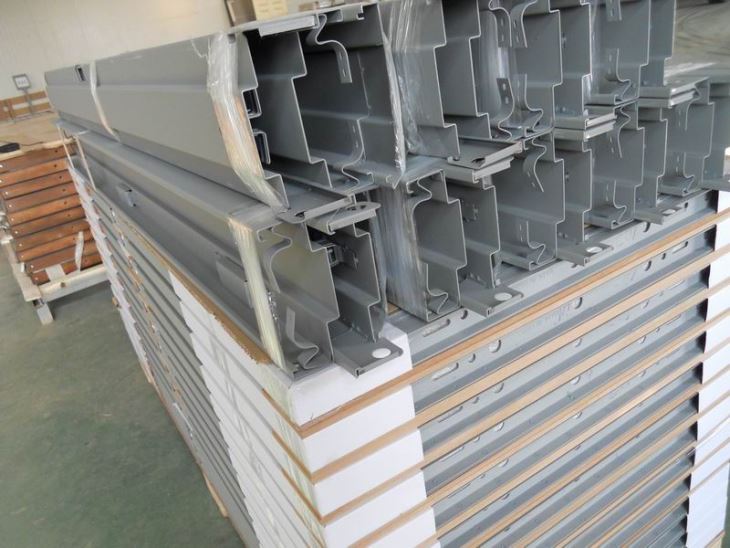

As a steel frame supplier, we offer a wide variety of steel frame products. Our inventory includes Kd - Knocked Down Masonry Metal Frame, which provides an easy - to - assemble solution for masonry construction. We also have Metal Frame options suitable for various structural and non - structural applications. Additionally, our Knock Down Frame products are ideal for projects where easy transportation and on - site assembly are required.
Connect with Us for Your Steel Frame Needs
If you are in the process of planning a construction project and need high - quality steel frames, we invite you to connect with us. Our team of knowledgeable professionals is ready to assist you in selecting the right sizes and types of steel frames for your specific requirements. We can provide detailed product information, offer technical support, and ensure timely delivery. Don't hesitate to contact us for a quote and to start discussing your steel frame procurement.
References
- "Steel Construction Manual", American Institute of Steel Construction (AISC).
- "Structural Steel Design", William T. Segui.
- Manufacturer's product catalogs and technical specifications.
