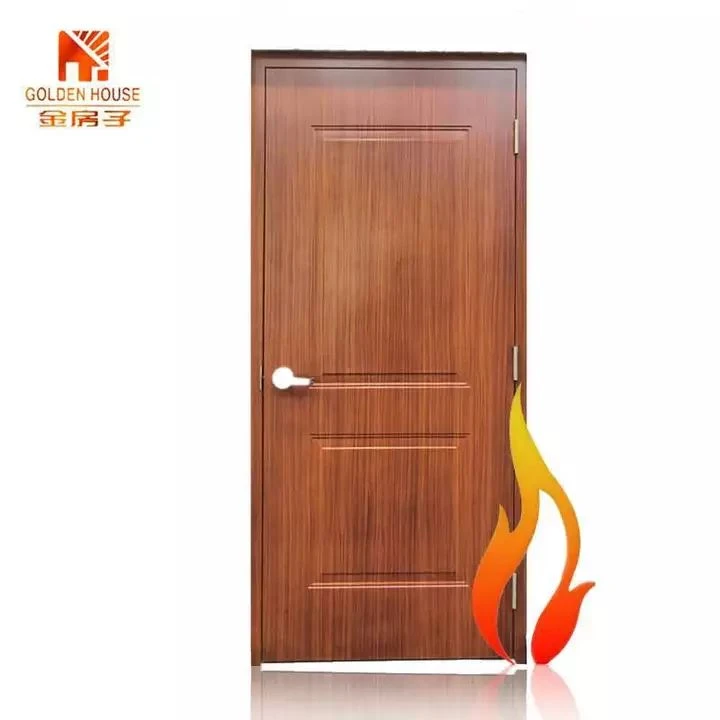

this is 2 penal steel fire door
GH Steel Fire Door Features :
fire rated up to 3 hours with WHI UL FM label applied .
all of doors are designed and fabricated under SDI requirements.
1 3/4" thickness (44.5mm),non-handed assemble with reversible hinge shim parts.
fire rated wire glass or louver option for vision lites .
all materials is approved in accordance with NFPA ASTM and other standards .
steel stiffener, hardware preparations and reinforcement are conformed with ANSI standards .
GH Steel Fire Door Technical Data :
| Brand | Golden House (GH) |
| Standard | UL 10(b),UL 10(c) /NFPA/ASTM /UBC7-2 |
| Certifications | INTERTEK(WHI),FM,UL |
| Fire rated time | 45min,90min,up to 180 min |
| Door Size (single) | standard width up to 4'0"(1200mm ) Height up to 8'0"(2440mm);customized size is available . |
| Leaf thickness:1 3/4" standard ( 44.5mm ) | |
| Frame jamb depth:100-300mm | |
| Door size (Double) | Maximum size is 8'x8'(2440x2440mm) |
| Door leaf sheet | 20Ga-18Ga (1.0/1.2mm).customized level is available |
| Door frame sheet | 16Ga.(1.5mm) ,customized level is available |
| Opening | swing /inward or outward |
| Type | 2 panel/6 panel/flush panel/vision lite /louver |
| Material of leaf and frame | cold roll steel or Galvanized Steel or Galvannealed Steel |
| Filling material | Honeycomb,Polystyrene,Mineral Fire Board |
| Surface finish | factory Primer /finsih paint/power coated/wood grain finished |
| Color | RAL color system or be customized as well |
| Application | Suitable for building project,business,home decoration (Office,hotle,church,home and so on ) |
| Packing | in wooden case or steel pallet package |
FIRE DOOR FRAMES
Frame used in masonry walls maybe used with a maximum 3-hour fire door while frame used in drywall stud walls are intended to be used with a maximum 1-1/2-hour fire door. consulting with your door frame manufacturers listings for fire door frames than can be used in drywall stud walls with a maximum 3-hour ratings.
Dalian golden house door &window manufacture Co.,ltd. It is a professional manufacturer of a wide range of hollow metal doors, frames and wood doors for commercial and residential construction.
We have more than 28 years experience,The company total capital exceeds 80 million RMB, a trained and dedicated employee team, top quality equipment and planning tools and the occupying area of company is 1, 200,000 sq. ft.,The factory annual production capability of fire proof door (steel, wood) is 250,000 sets, Wood door is 30,000 sets.
Our company has strong R&D ability and hundreds of advanced equipments including Amada Fabrication Center housing automated punching and forming equipment. Especially, the factory is the only door manufacture in China who has digital controlled rotary turret punching-machine which was imported from Italy and conducting laser welding technique for door leaf edge.We have established distribution centers in Los Angeles and Vancouver respectively, and have a good market share and reputation in the North American market.The GH commitment is to provide superior quality and service at competitive pricing to our valued customers.
