Fire-Rated doors are required to be suited for the various type of walls as below :
Frame and Hardware must also carry the appropriate fire label
Brief Introduction
Commercial hollow metal doors with lite kits and glass (or narrow windows) not only provide light to a room, but can ensure more safety, too. Doors with glass window lites, provide safety for well traveled corridors hallway , allowing to see whether others are entering the room.
Including Pre-Installed Vision Lite w/ Glass window.
Ideal for Interior and Exterior buliding Applications
Fire-Rated UL wiregGlass Options Available

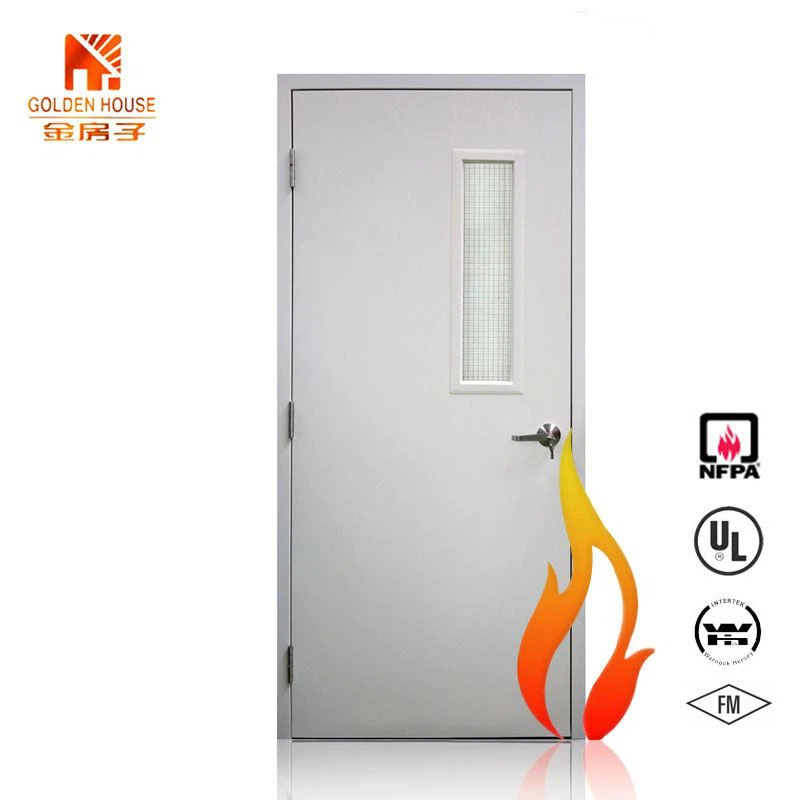

This is 90 minute steel fire rated door
|
Door material: |
A40 Galvanized steel or galvanealed .Heavy Duty, SDI Level 2 –( 1.1mm)18-Gauge Steel Face Sheets for doors ,(1.4mm) 16 gauge for frame – (16 Ga. 20 Ga. Available) |
|
Core |
Honeycomb Core or Polystyrene Core mineral fireboard /rock wool |
|
Door Thickness |
1-3/4"(44.5mm )AS Standard |
|
Handing |
Non-Handed Design; Reversible Hinge Plates |
|
Door Sizes |
Standard Widths up to 4'0"(1220mm), Heights to 8'0"(2440mm) for single ,double will be 8'0" by 8'0"(2400*2400mm),other sizze customized available |
|
Edges |
Square Hinge and Lock Edges (Beveled Edges Available) – Full Height, Epoxy Filled Mechanical Interlock Edges |
|
Reinforcements |
Heavy Gauge Steel for Door Closer and Hinge, Lock Reinforcements |
|
Channels |
16-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap |
|
Door Finish |
Gray Primer/Finish Paint/powder coating /wood grain finished |
|
Standard Preps |
161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, RPD (blank edge, panic reinforced) |
|
Optional Preps |
Continuous Hinge Application (Undersized Width), Exit Device Trim, Louver Cutouts |
|
Door Fire-Rating |
Optional (with fire glass) – FM/WHI /UL up to 1.5 Fire-Rating, Positive Pressure and "S" Smoke included |
|
Vision Lite Frame Construction |
18-Gauge Steel |
|
Vision Lite Frame Fire-Rating |
1.5 Hour – Tested and Listed for UL |
|
Vision Size |
5"*20" regularly, or customized |
|
Glass Types |
6.8mm Fire-Rated Wire glass |


1991
Golden house door has started producing first fire door and security door.
1991
Established dalian golden house door & window Mfg Co., Ltd in seashore city-dalian.
1998
The company has expanded production scale,established a large production base in
Wafangdian west suburb industry Park,the occupying area is 1, 200,000 sq.
2001
The company has imported numerous advanced equipments from Japan,Italy and Germeny in succession.
2003
The company has introduced German solid wood and aluminum window production line.
2006
The company has become the first door factory who possesses UK INTERTEK WH and USA FM fire certificates.
2007
Set up a distribution center in Los Angeles USA.authorized FM fire label with fire-rated 3 hours steel door and frame.
2010
Cooperate with italy door and to be agency of AMARR enterprise for developing global markets.
2012
Set up a distribution center in Vancouver Canada.
2015
Authorized WHI fire label with fire-rated 3 hours on doubel steel door frame and UL fire label with fire-rated 20 minutes on wooden door.
2018
Authorized UL fire label with fire-rated 90 minutes on steel doors.
2019
Authorized WHI fire label with fire-rated 90 minutes on wooden door matched steel frame.
2020
Authorized UL fire label with fire-rated 3 hours on steel door and frame.
2021
Authorized the 34dB sound insulation steel door certificate.
