90 minute Half vision steel Fireproof Swing Door

Feature： Including self-attaching netal frame lite kits mounted with glass. Glass types wire glass or other fire safety glass Lite kit order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under 1-3/4”(44.5mm) Thickness , non-handed design with reversible hinge plates Factory-applied gray primer or finished painting(RAL color option) Fire-rated time up to 1.5 hours with UL/WHI /FM label

Send Inquiry

Description

Technical Parameters

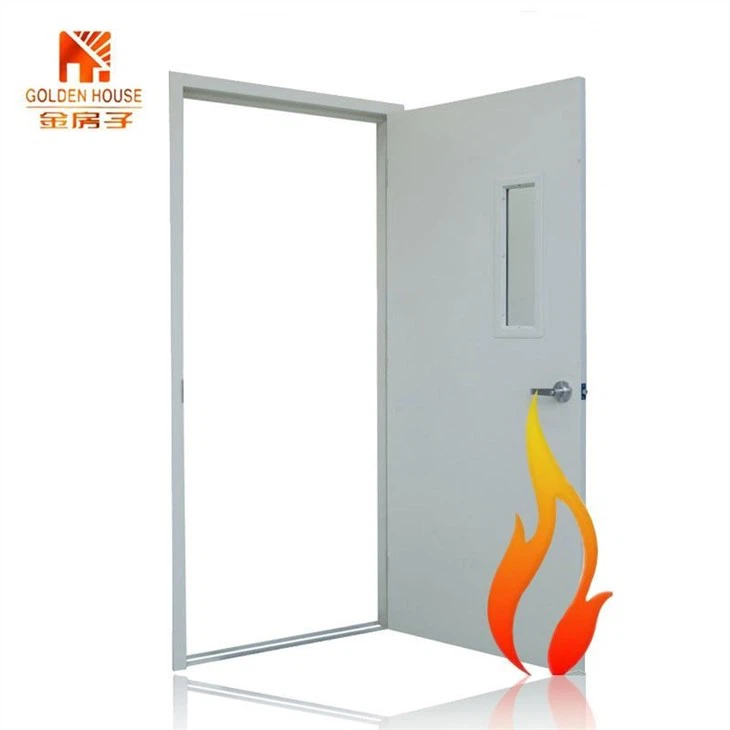

Right hand fireproof swing door

Brief Introduction

Commercial hollow metal doors with lite kits and glass (or narrow windows) not only provide light to a room, but can ensure more safety, too. Doors with glass window lites, provide safety for well traveled corridors hallway , allowing to see whether others are entering the room.

Including Pre-Installed Vision Lite w/ Glass window.

Ideal for Interior and Exterior buliding Applications

Fire-Rated UL wiregGlass Options Available

photobank

Door material	A40 Galvanized steel or galvanealed .Heavy Duty, SDI Level 2 –( 1.1mm)18-Gauge Steel Face Sheets for doors ,(1.4mm) 16 gauge for frame – (16 Ga. 20 Ga. Available)
Core	Honeycomb Core or Polystyrene Core mineral fireboard /rock wool
Door Thickness	1-3/4"(44.5mm )AS Standard
Handing	Non-Handed Design; Reversible Hinge Plates
Door Sizes	Standard Widths up to 4'0"(1220mm), Heights to 8'0"(2440mm) for single ,double will be 8'0" by 8'0"(2400*2400mm),other sizze customized available
Edges	Square Hinge and Lock Edges (Beveled Edges Available) – Full Height, Epoxy Filled Mechanical Interlock Edges
Reinforcements	Heavy Gauge Steel for Door Closer and Hinge, Lock Reinforcements
Channels	16-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap
Door Finish	Gray Primer/Finish Paint/powder coating /wood grain finished
Standard Preps	161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, RPD (blank edge, panic reinforced)
Optional Preps	Continuous Hinge Application (Undersized Width), Exit Device Trim, Louver Cutouts
Door Fire-Rating	Optional (with fire glass) – WHI /UL up to 1.5 Fire-Rating, Positive Pressure and "S" Smoke included
Vision Lite Frame Construction	18-Gauge Steel
Vision Lite Frame Fire-Rating	45 minutes or 1.5 Hour – Tested and Listed for UL
Vision Size	22"*22" regularly, or customized
Glass Types	6.8mm Fire-Rated Wireglass
